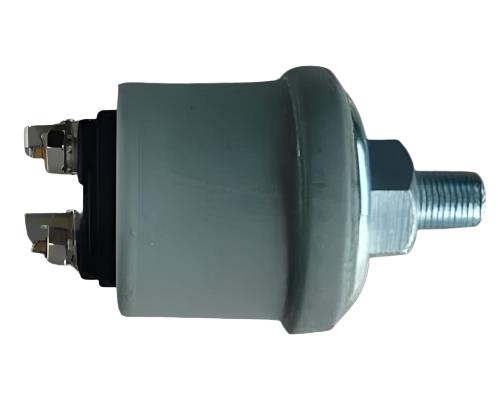

OIL PRESSURE SWITCH VDO 0-10 bar GENUINE FG WILSON PARTS 622-333
VDO 0-10 bar oil SWITCH - 622-333

About this item

• Part No. 622-333-0-10 Bar VDO Oil Pressure Sender Switch with 1/8 Thread
• Fits FG Wilson and Olympian Genset Models with 0-10 Bar Oil Pressure Guages (12 and 24V)
• Supersede to obsolete Part No. 622-137.
• Other thread size LOP sender/switches also available.



  Oil Pressure Sender Switch 622-333 0-10Bar for FG Wilson Olympian Generators
  Oil Pressure Sender Switch 622-333 for FG Wilson Generators

  Part Numbers: 622-333, 622-333, 622-331, 622-137
  Description:
  Fit to all FG Wilson and Olympian genset models with 0-10 bar oil pressure gauges (12 and 24V).
  0-5 bar oil pressure sender/switch also available.
  Specification:
  Terminal G: Is the sender and wire “OP” should be connected to this terminal - with the wire disconnected,
  the terminal should read close to 10 ohms to ground with genset off.
  Terminal WK: Is the switch and *wire “15” should be connected to this terminal - with the wire disconnected,
  the terminal should read less than 1 ohm to ground with genset off.
  * Wire “15” will not be connected on 2300 & 2800 electronic engines, since the engine’s Electronic Control
  Module will control the low oil pressure shutdown.
