FG Wilson 917-530 was - 630-466 EIM PLUS – 24V Engine Interface Module
FG Wilson 917-530 was - 630-466 EIM PLUS – 24V Engine Interface Module
SKU:917-530
Low stock: 1 left
Couldn't load pickup availability
Available for back order when not in stock, please contact us for lead times and check out as normal.

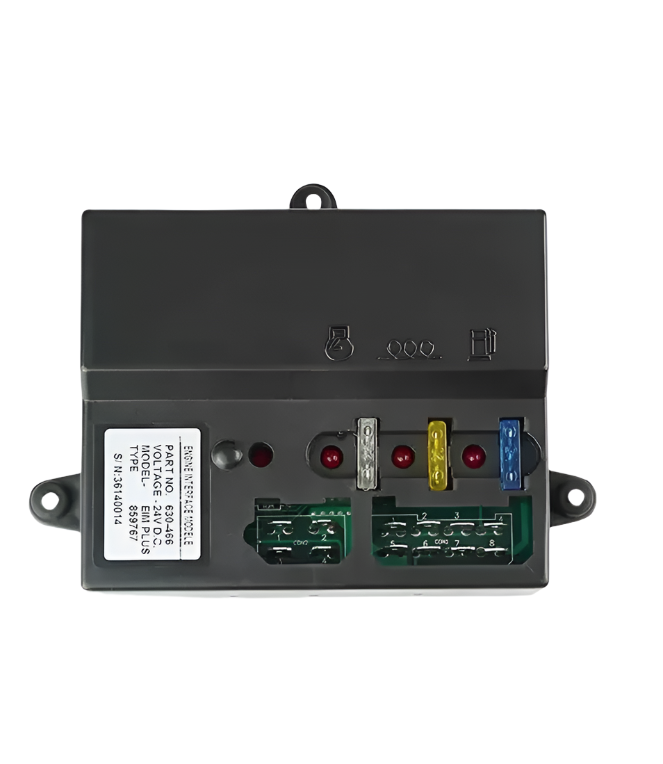

FG Wilson 917-530 was 630-466 EIM PLUS – 24V Engine Interface Module
Part Number: 630-466
Type: Engine Interface Module (EIM PLUS)
Voltage: 24V DC
Brand: FG Wilson
Condition: New / Genuine OEM Replacement
Product Description
The FG Wilson 630-466 is a genuine 24V EIM PLUS (Engine Interface Module), used in a range of FG Wilson and Olympian diesel generator sets. This engine-mounted PCB controls critical engine components including the starter motor solenoid, glow plugs, and the fuel shut-off solenoid. With built-in LED indicators and fused outputs, it ensures safe, reliable, and efficient control of high-current circuits.
Key Features
-
Original FG Wilson engine interface module – EIM PLUS version
-
Controls starter motor, glow plug, and fuel solenoid circuits
-
Fully sealed, vibration-resistant housing for harsh environments
-
Built-in diagnostic LEDs for each circuit
-
Individually fused output circuits
-
Engine-mounted design for ease of access and protection from panel faults
Specifications
Operating Voltage: 24V DC
-
Dimensions: Approx. 210 mm x 150 mm x 145 mm
-
Weight: Approx. 0.4 kg
-
Mounting Type: Engine-mounted with anti-vibration supports
-
Construction: Sealed housing with internal relays, fuses, and LED indicators
Replaces / Compatible With
-
FG Wilson: 630-089, 917-422, 917-530
-
Caterpillar/Perkins: 258-9756 (EIM BASIC)
-
Only for 24V systems – not compatible with 12V modules such as 630-088 or 630-465
What’s Included
-
1 x FG Wilson 630-466 Engine Interface Module (24V)
-
Supplied in secure packaging with anti-static protection.
FG Wilson Genuine Parts
FG Wilson was founded in 1966 by Fred Wilson. FG Wilson has become a leading global provider of generator sets. Over the decades, much has changed, but the FG Wilson formula of quality, support, and value for their generator parts has remained steadfast for over 50 years.
FG Wilson have trusted us to be an authorised, official dealer of their genuine parts. Our commitment to supplying authentic FG Wilson parts ensures the reliability and longevity of your generators. For all your FG Wilson parts needs, trust us to deliver exceptional quality, service, and ongoing repair for optimal uptime.
We are the largest stockist of FG Wilson Genuine Parts in the UK and are equipped with state-of-the-art parts ordering software, Ensuring you have access to the right parts, At the right time with full warranty. If parts are needed during Maintenance, Servicing or Repairs, Then Ensure only genuine parts are fitted. They are the only parts that are approved and warranted by FG Wilson, When buying all your parts from an authorised dealer like us at Mitchell Powersystems, You can guarantee you get Genuine Quality Reliable Parts Every time.
