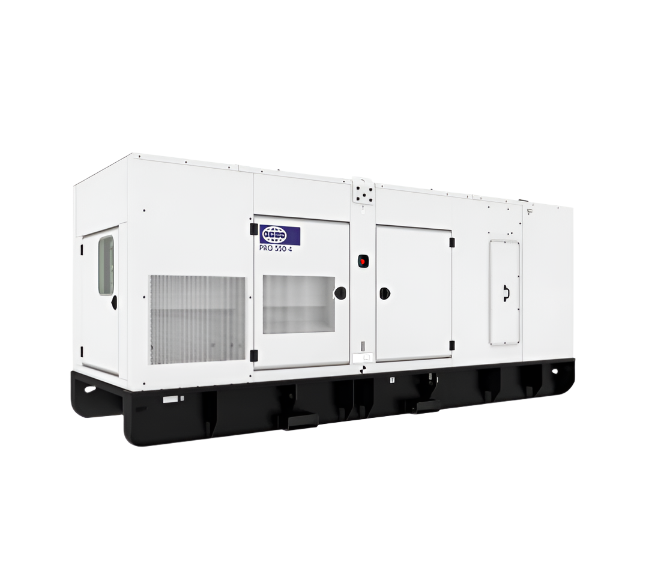

FG Wilson PRO550-4 Diesel Generator – 550 kVA Stage V Rental Power

FG Wilson PRO550-4 Diesel Generator – 550 kVA Stage V Rental Power

Power your site with the reliable and efficient FG Wilson PRO550-4 diesel generator, delivering 550 kVA of prime power designed to meet the latest EU Stage V emissions standards. Perfect for demanding rental and temporary power applications including construction, industrial sites, events, and utilities.

Key Features:

• Power Output: 550 kVA (Prime) / 588 kVA (Standby)

• Engine: Perkins 2806J-E18TAG1, 6-cylinder turbocharged diesel

• Fuel Tank: 1,125 litres for extended run times

• Runtime: Approx. 12 hours at 75% load

• Sound-attenuated, galvanized steel canopy for durable, quiet operation

• DeepSea DSE7320 control panel with LCD display and comprehensive monitoring

• Heavy-duty base frame with integral double-wall fuel tank and 110% spill containment

• High ambient radiator and integrated spark arresting silencer

Optional Upgrades:

• Permanent Magnet Generator (PMG) for enhanced alternator performance

• Battery charger and coolant heater options

• Variety of exhaust silencers tailored to application needs

• CE and Clipsal socket boxes with circuit protection

Specifications:

• Weight: Approx. 6,410 kg

• Dimensions (L×W×H): 5040 × 1800 × 2390 mm

• Emissions: EU Stage V / Tier IV Final compliant

• Warranty: 1 year unlimited hours prime power, 2 years/500 hours standby

Key Specifications

• Power Output:

  • Prime Power: 550 kVA / 440 kW

  • Maximum Power: 588 kVA / 470 kW

• Engine:

  • Model: Perkins 2806J-E18TAG1

  • Displacement: 18.1L

  • Bore x Stroke: 145 mm x 183 mm

  • Governor Type: Electronic ECM controlled (A6E2)

  • Compression Ratio: 16.0:1

• Alternator:

  • Model: Leroy Somer LL6114K

  • Excitation: Static regulated, brushless, self-excited

  • Protection: IP23

• Frequency: 50 / 60 Hz switchable

• Speed: 1500 RPM

• Voltage: 400V, 3-phase

• Fuel Tank Capacity: 1,125L (providing approximately 12 hours of runtime at 75% load)

• Emissions Compliance: EU Stage V.

 Standard Features

• Enclosure: Galvanized, sound-attenuated canopy designed to withstand harsh on-site conditions while minimizing noise.

• Control Panel: DeepSea DSE7320 Auto Mains (Utility) Failure Control Module with back-lit LCD screen and LED indicators.

• Cooling System:

  • High ambient capability radiator suitable for operation up to 43°C.

  • Pusher fan with guards.

  • Coolant drain line with internal brass ball control valve.

  • 50% coolant antifreeze with corrosion inhibitor.

• Fuel System:

  • 1,125L double-wall fuel tank providing approximately 12 hours of runtime at 75% load.

  • Auxiliary connections for customer-supplied fuel transfer with 3-way fuel transfer system, internally mounted within the bunded area.

  • Engine-mounted primary fuel filter (10 micron) with integral water separator and water-in-fuel sensor.

  • Off-engine mounted Racor fuel water separator (4 micron) with secondary engine-mounted fuel water separator.

  • Manual push-button priming pump.

  • Auxiliary connections for customer-supplied fuel transfer with 3-way fuel transfer system, internally mounted within the bunded area.

  • Mechanical and electronic fuel gauges with control panel display.

  • Low-level fuel warning and shutdown.

  • Configurable bund level sensor with low-level warning and high-level warning/shutdown.

• Mounting: Soft-mounted on a heavy-duty steel base frame with integral 110% spill containment.

• Exhaust System: Integrated spark arresting silencer with flexible connectors in a separate compartment.

Reliable, efficient, and compliant — the FG Wilson PRO550-4 is engineered for your toughest power needs.
